ZHENCB GPS TRACKER

VL101G

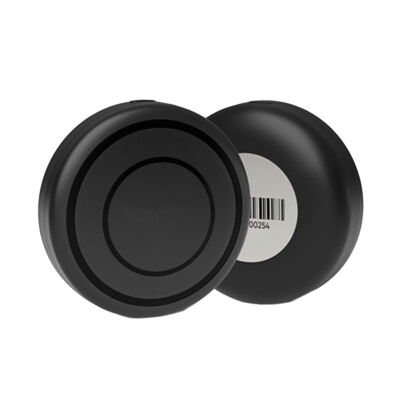

PT32

PT32 is a 4G full-network pet positioning terminal specially designed for pets. It integrates 4G full-network wireless communication technology and GPS/BDS satellite navigation positioning technology. The terminal adopts industrial-grade high-integration fully built-in antenna design and intelligent power-saving wake-up work. It has functions such as real-time positioning, vibration alarm, and light pet search. Three working modes can be set to meet various application scenarios of customers, and users can send commands to switch working modes. With the global positioning service platform, the location of the device can be queried anytime and anywhere.

Historical Playback

Vibration Alert

Speeding Alert

Geo-fencing

Anti-disassembly Alert

Real-time positioning

Descriptions

Communication networkLTE Cat 1+ GSM
FrequencyLTE-FDD: B1/B3/B5/B7/B8/B20
GSM: B3/B8
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM: B2/B3/B5/B8
Battery850mAh (3.7V polymer battery)
Input voltage3.4V-4.5VDC
Standby current4V/Average 5mA
Sleep Current4V/Average 3mA
Operating temperature–20℃ to +75℃
Dimensions14.5mm(L)*9mm(W)*8.5mm(H)
Weight46g

GNSS

Positioning system

Frequency

Positioning accuracy

Tracking sensitivity

Acquisition sensitivity

TTFF (open sky)

Cellular

Communication network

Frequency

Power

Battery

Input voltage

Interface

LED indication

SIM

Data storage

Digital inputs

Digital outputs

Physical specification

Dimensions

Weight

Operating environment

Operating temperature

Operating humidity

IP rating

Feature

Sensors

Scenarios

Driving behavior analysis

* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
