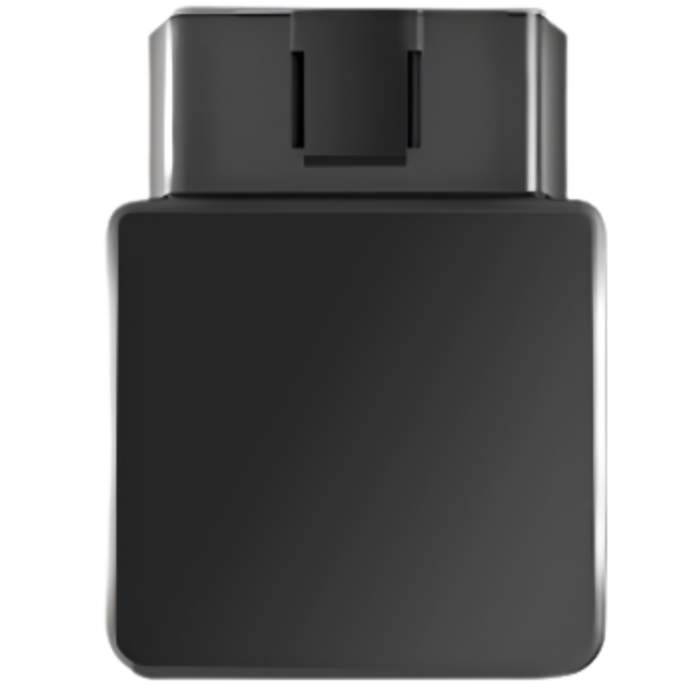

B13L is a new generation 4G Cat 4 OBDII vehicle locator, suitable for corporate vehicles, insurance based on usage, fleet management and personal vehicles. It can obtain vehicle data such as vehicle VIN code, engine speed, water temperature, accumulated mileage, etc., and monitor the real-time status of the vehicle in all aspects.
LTE & GSM Network
Plug and Play
On-Board Diagnostics
Multiple Alerts
On-Board Diagnostics
WIFI hotspot Internet access (optional)
9-36V Operating Voltage
| Communication network | LTE Cat 4 + GSM |
| Frequency | LTE-FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/: B3/B8 CAT M: B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/B66/B85 NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66/B71/B85 GSM: B2/B3/B5/B8 |
| Battery | 140mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9V-36VDC |
| Operating temperature | –20℃ to +75℃ |
| Dimensions | 58mm(L) * 45mm(W) * 22mm(H) |
| Weight | 54g |
